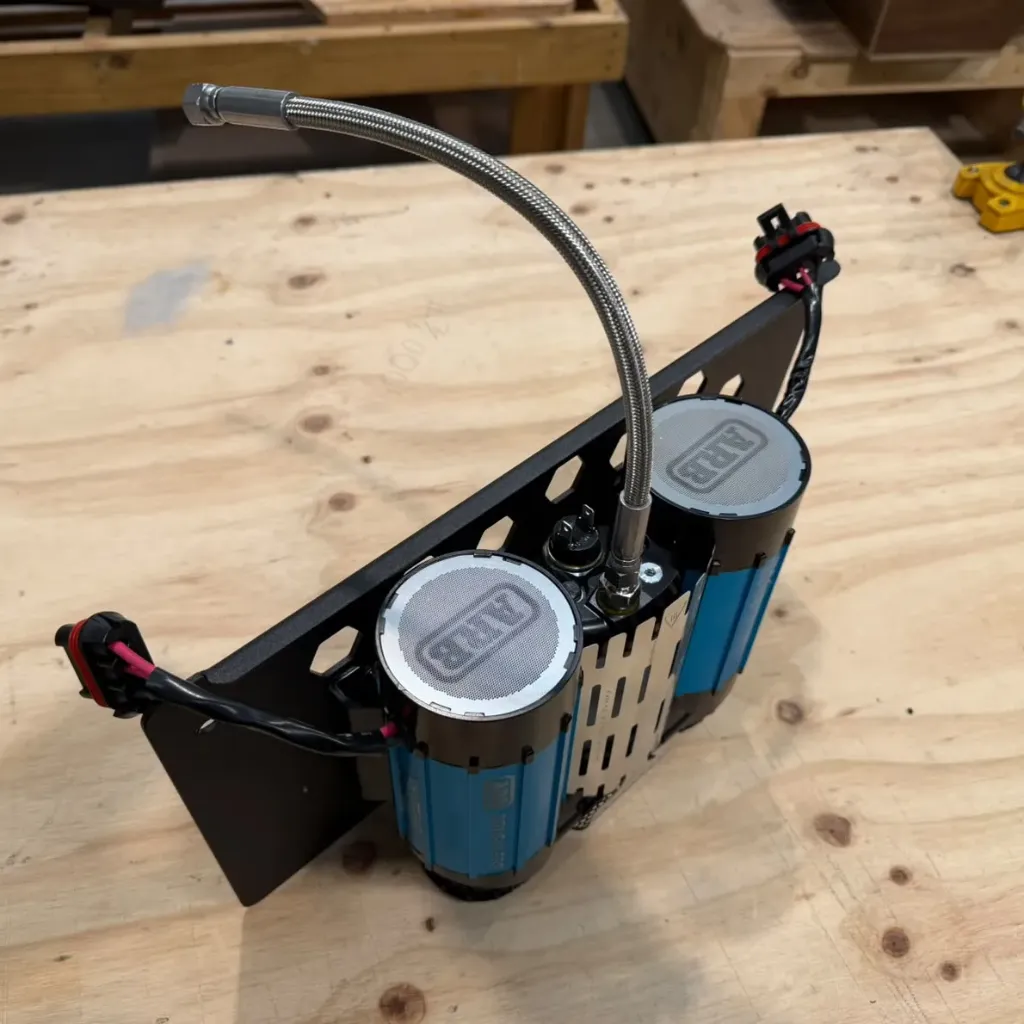

Odyssey Compressor Mount

Mount your onboard air compressor cleanly behind the Odyssey Utility Hatch.

Our Compressor Mount is purpose-built for the right-hand side of the Toyota 78 Series Troop Carrier — it bolts into the factory cavity alongside our Odyssey Utility Hatch, so your compressor sits secure, tidy, and out of the way. Suits all model years of this vehicle.

Whether you're running a single brushed unit for airing up tyres, or a twin brushless setup for air lockers and heavy-duty tyre work, the mount takes the same bolt pattern across all four. No guessing, no modifying — it drops straight on.

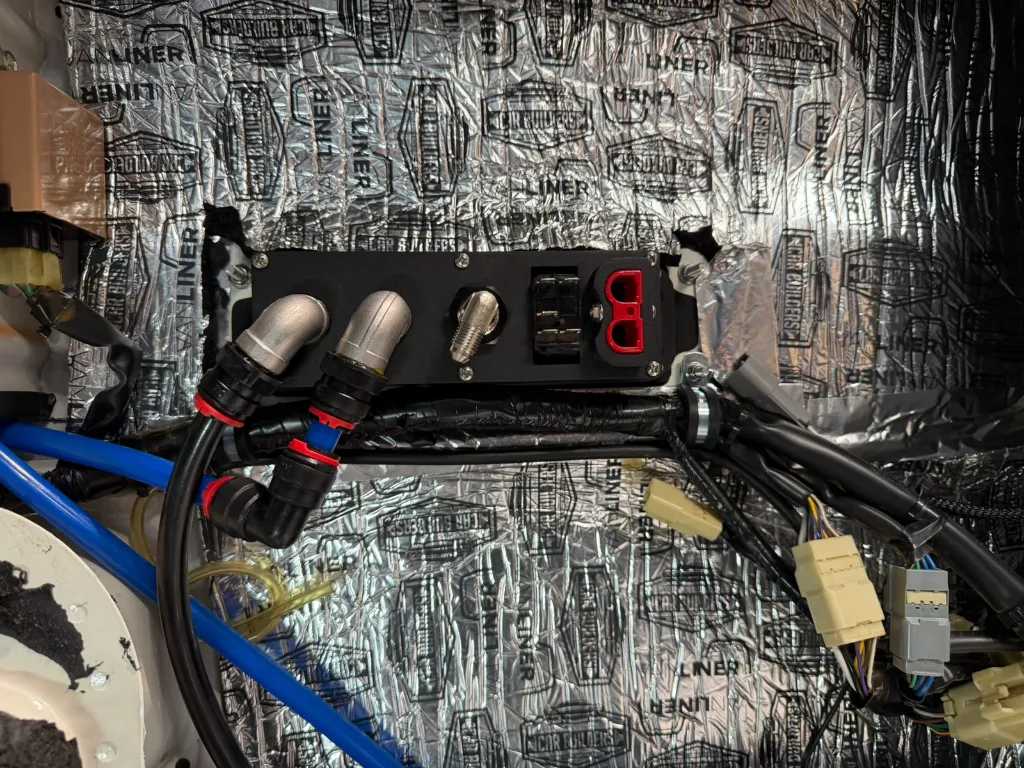

It pairs cleanly with our Odyssey Utility Hatch. The compressor mounts in the cavity right behind the hatch, so the air outlet, switch, and all your other connections can route straight through the hatch's sealed, lockable access door. No loose lines, no cable ties — just a clean, factory-looking install that's easy to reach when you need to air up a tyre on the track. The Utility Hatch is a separate product — the Compressor Mount works on its own, but together they make for one tidy, integrated setup.

Defining Features

• Purpose-built for the right-hand side of the Toyota 78 Series Troop Carrier — all model years.

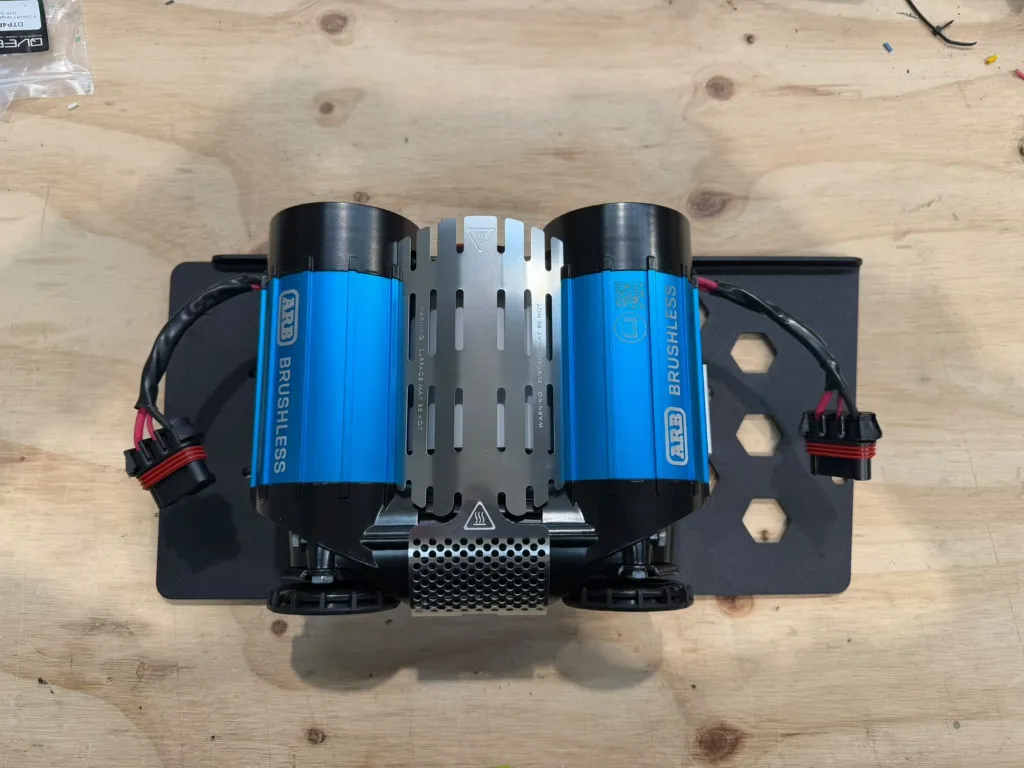

• Accepts all of ARB's 12V air compressors:
  • Single on-board brushed (CKMA12)
  • Twin on-board brushed (CKMTA12)
  • Single on-board brushless (CKBLA12)
  • Twin on-board brushless (CKBLTA12)
• Designed to pair with the Odyssey Utility Hatch — the compressor mounts behind the hatch, with air and power routed through the hatch's sealed, lockable access panel.
• Uses existing mounting points in the vehicle's cavity.
• Powder-coated aluminium plate with stainless steel fixings throughout.

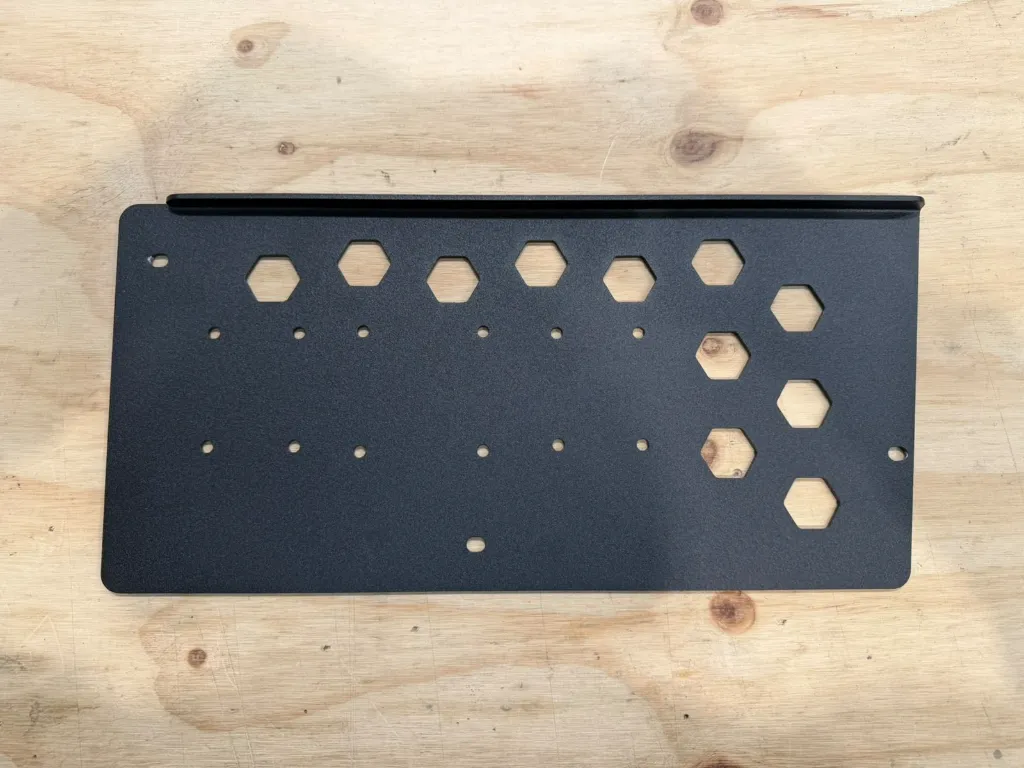

• Cutouts to promote airflow — this area of the vehicle can get quite hot, the cutouts help promote airflow around the compressor to keep it cool and last longer.

Construction and Materials

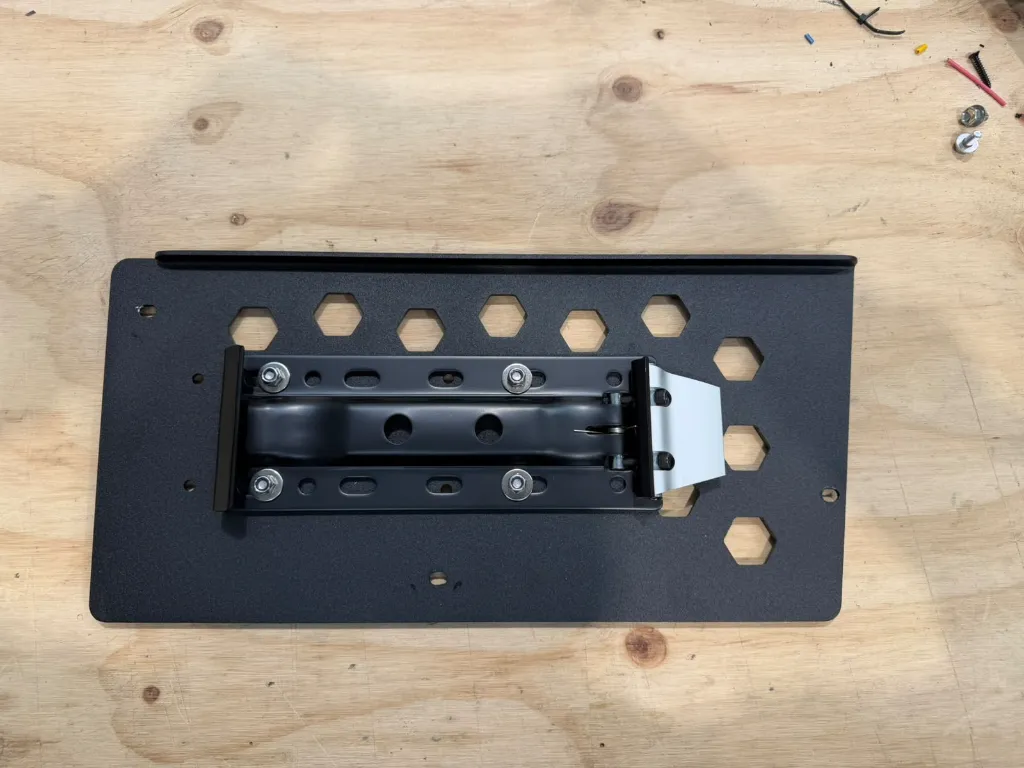

• Powder-coated aluminium mounting plate.
• Stainless steel fixings and hardware.

Fitting

• Quick installation using existing cavity mount points — no marking out required.
• Drill out factory mounting points and install supplied riv-nuts.

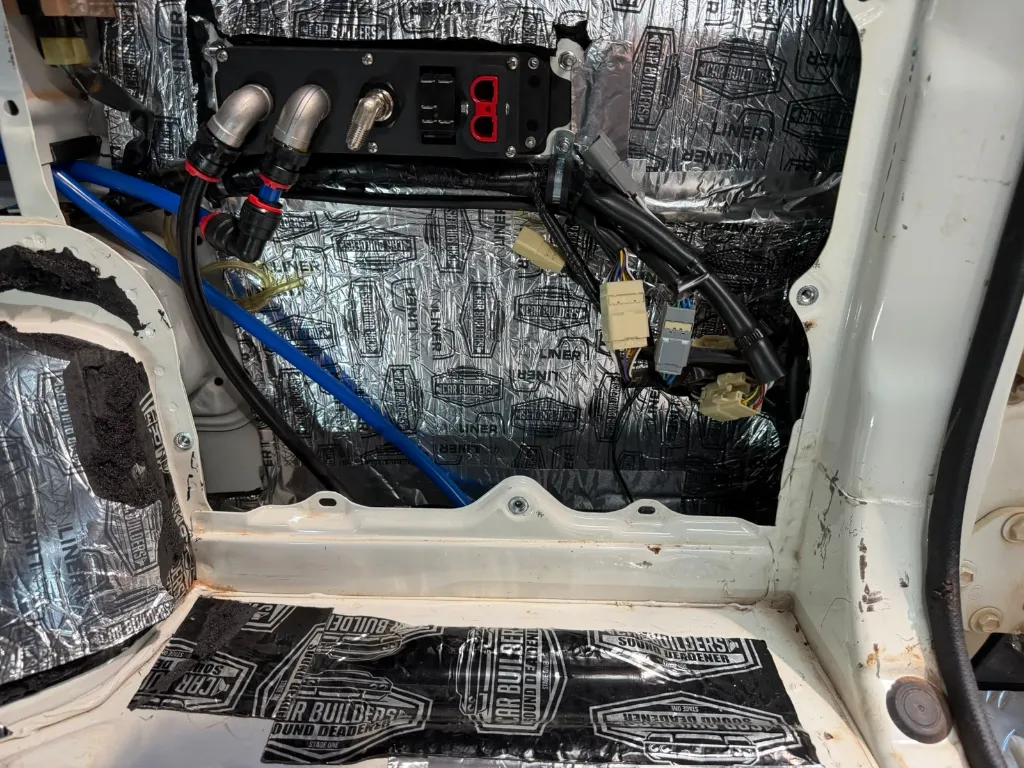

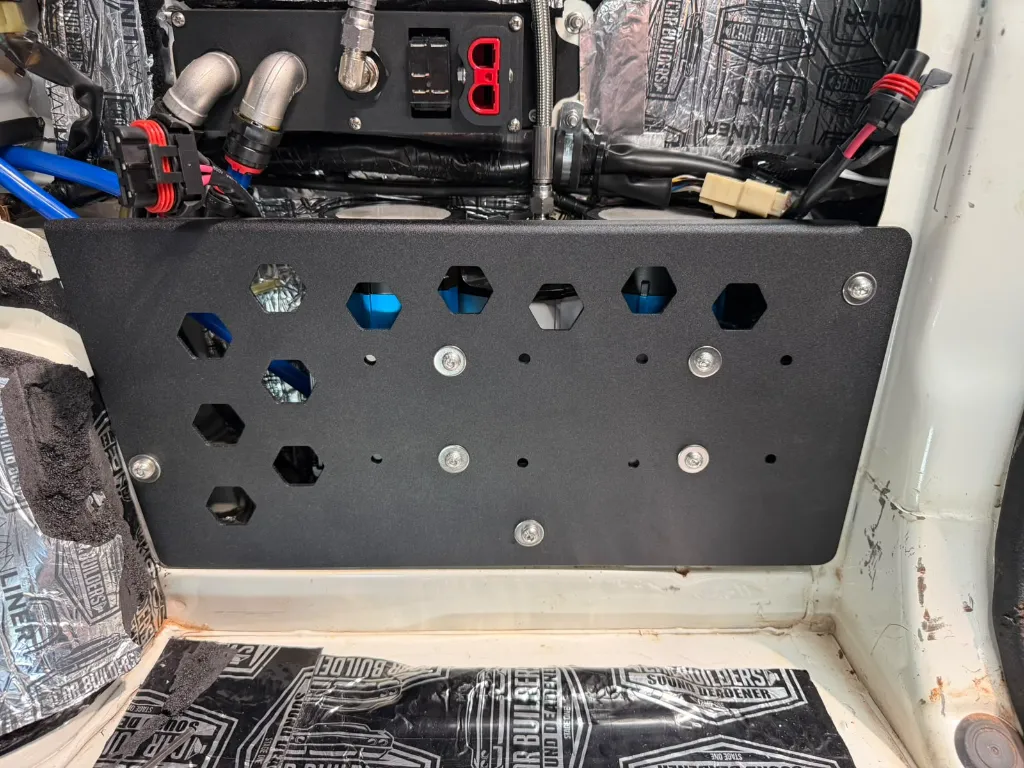

• Position the plate in the right-hand side cavity, bolt to the factory points.
• Mount the compressor to the plate using the supplied hardware.
• Pair with the Utility Hatch's air outlet fitting for simple and easy access to air.
