Odyssey Utility Hatch

Our Utility Hatch is designed to make the most of your Troopy’s vent panel space — with zero compromise on looks or functionality. Whether you’re running water, power, air or all of the above, this sleek little hatch keeps everything sealed, secure, and easily accessible. It blends right in like it came from factory, but works hard like the rest of your setup.

Defining Features:

  • Utility hatch - uses the vent panel hole in the Troopy.

  • Can be both on drivers side and passengers side.

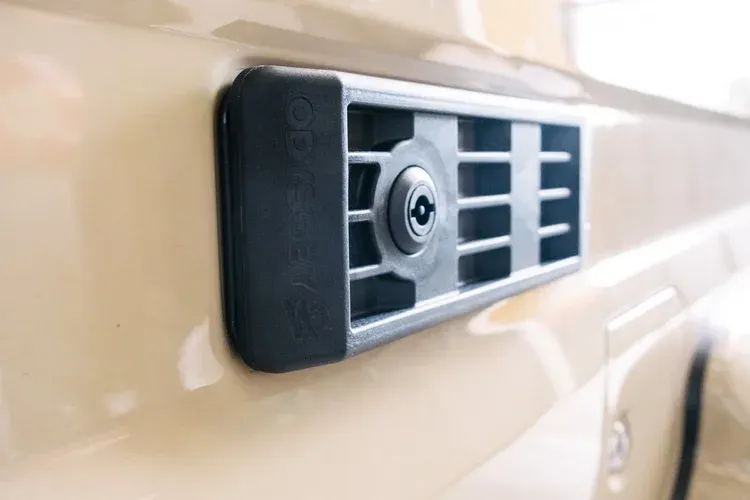

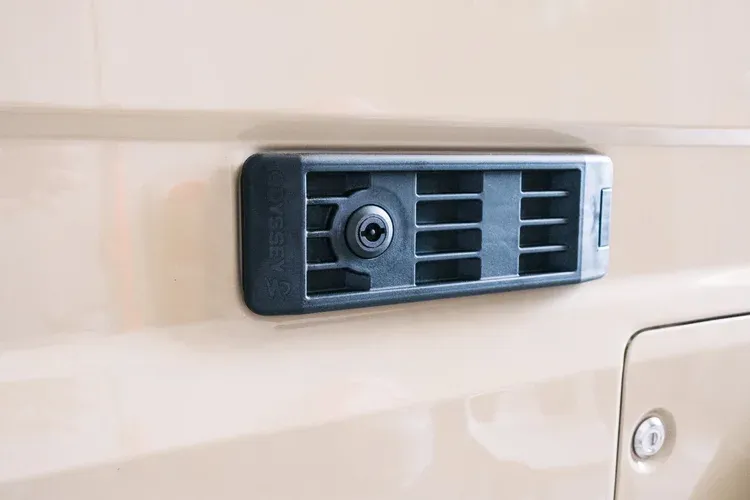

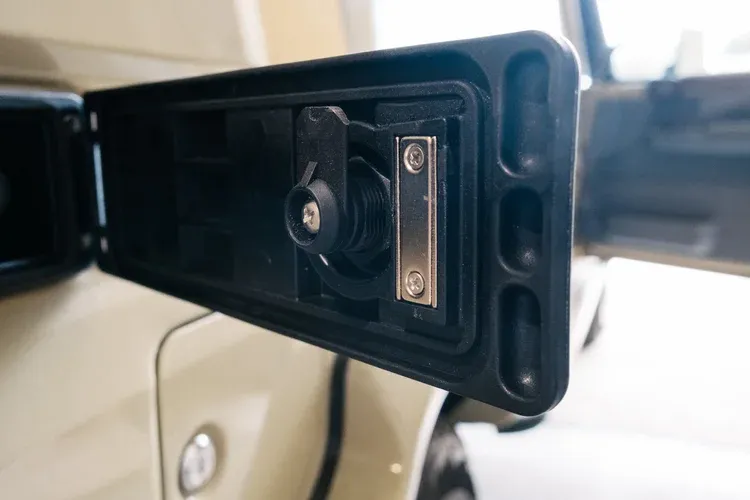

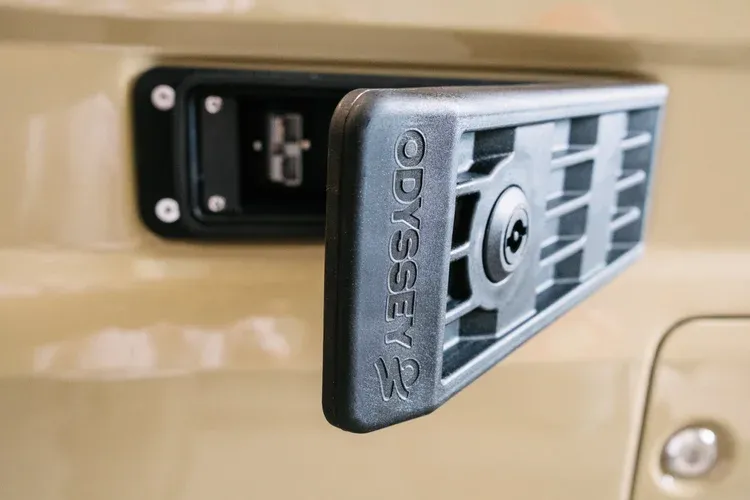

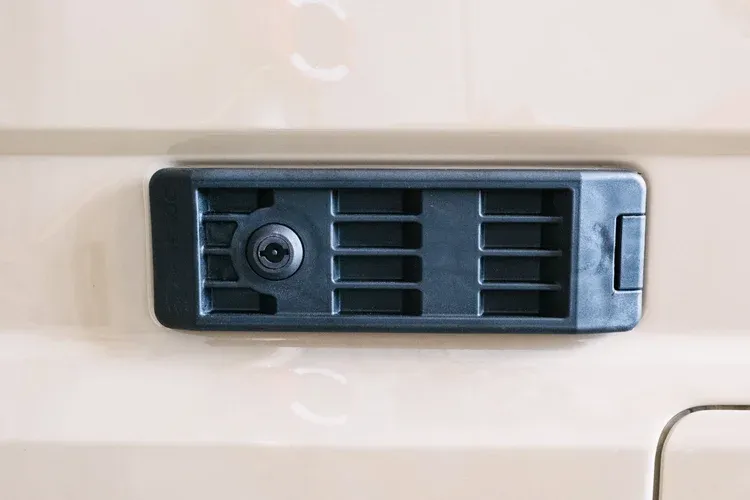

  • Lockable, sealable, magnetised, hinged hatch.

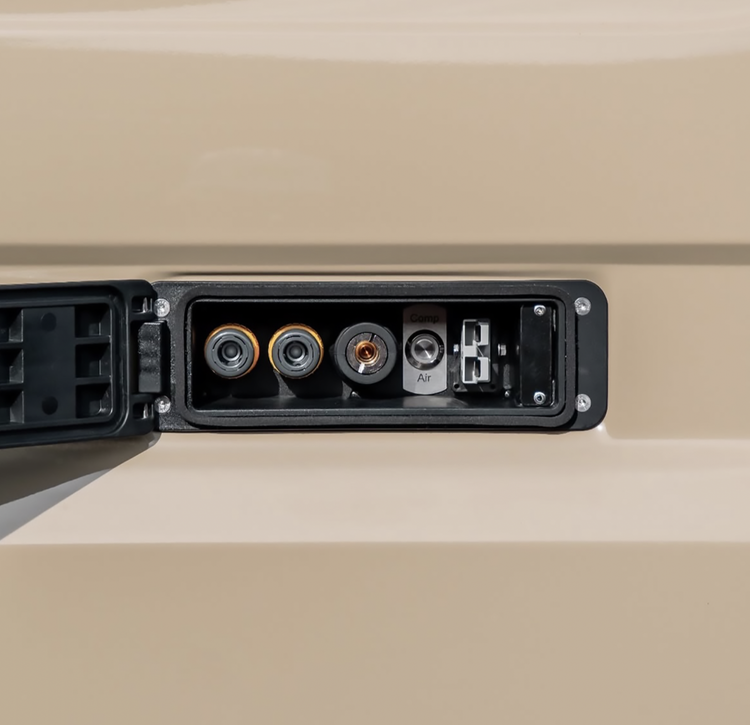

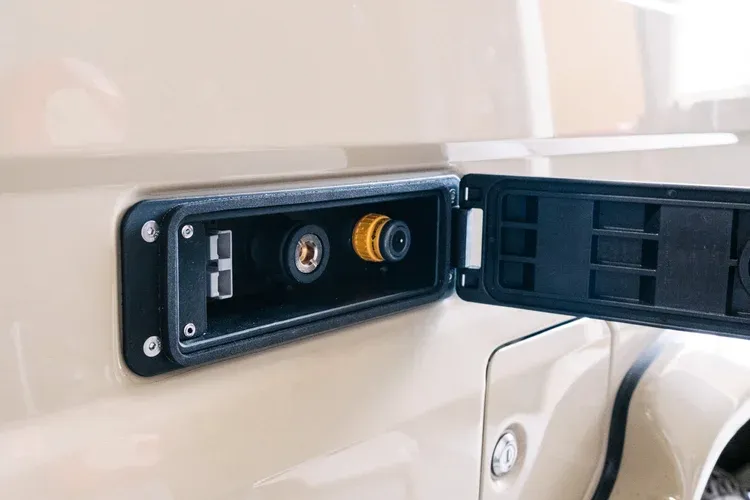

  • Can house water tank filler and outlet, air compressor outlet, anderson plugs for in and out - the configuration is customisable.

  • Stock looking - genuine as we could get it.

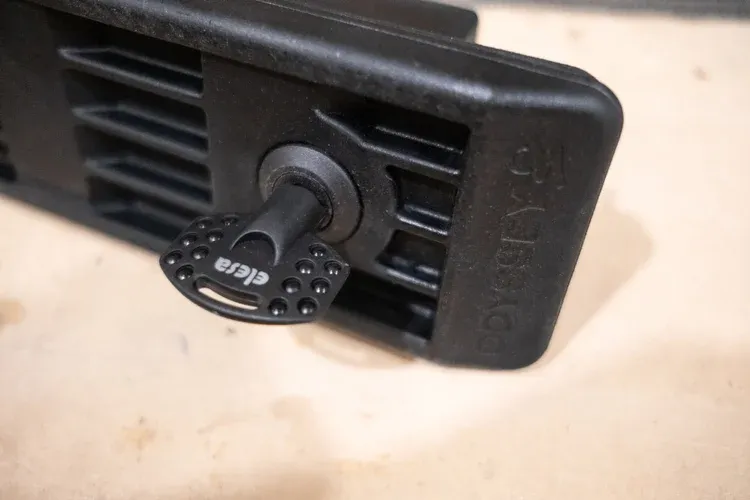

  • You can choose to use the lock or just the magnetised function for closing.

Construction and Materials:

  • No drilling involved.

  • Injection moulded from fibreglass reinforced nylon.

  • Stainless steel fixings.

  • Neoprene seals.

Fitting:

  • Quick installation.

  • Remove the original vent.

  • Retain the nuts from the original vent.

  • We supply the bolts but use the retained nuts to bolt it on. Riv-nuts provided for alternative mounting option for easier maintenance.

⚠️
We are unable to sell ARB parts online due to restrictions ARB have regarding reselling via eCommerce.
As such, the air outlet, or rocker switch if selected is not included in the product.
If you would like either of these parts, please contact us and we can quote these separately, or manually create an order for you.


  • Vehicle Side
  • Utility Hatch Version
  • Anderson Colour
  • Length (mm)
  • Height (mm)
  • Depth (mm)
  • Weight (kg)
  • Note
Add to wishlist
Price
400.00 400.00

Terms and Conditions

Specifications

Vehicle Side Left (Passenger), Right (Driver)
Utility Hatch Version Blank, Nitto x1 | Anderson x1, Nitto x1 | Anderson x2, Nitto x2 | Air x1 | Anderson x1, Nitto x2 | Air x1 | Anderson x2, Nitto x2 | Air x1 | Switch x1 | Anderson x1, Nitto x3 | Air x1, Custom
Anderson Colour None, 1x Grey (12V OUT), 1x Red (Solar IN), 2x Grey (12V OUT), 2x Red (Solar IN), 1x Grey (12V OUT) & 1x Red (Solar IN)
Length (mm) 255
Height (mm) 80
Depth (mm) 70
Weight (kg) 0.5
Note Weight and Depth can vary depending on fittings. All provided fittings fit within the wall cavity of the Troopy.
